sysvinit Linux: Complete Guide to System V Initialization System

The System V initialization system (sysvinit) is a traditional init system that has been the backbone of Unix and Linux systems for decades. Understanding sysvinit is crucial for system administrators working with legacy systems or distributions that still rely on this time-tested initialization framework.

What is sysvinit?

Sysvinit is the original initialization system derived from AT&T’s Unix System V. It’s responsible for starting and stopping system services during boot and shutdown processes. Unlike modern alternatives like systemd, sysvinit follows a sequential startup process based on runlevels and shell scripts.

Key Components of sysvinit

• Init process (PID 1): The first process started by the kernel
• Runlevels: Different system states (0-6)
• Init scripts: Shell scripts that manage services
• Inittab file: Configuration file defining system behavior

Understanding Runlevels

Runlevels define different operational states of your Linux system. Each runlevel serves a specific purpose:

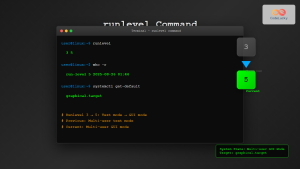

Checking Current Runlevel

You can check your current runlevel using several commands:

$ runlevel
N 3

$ who -r
         run-level 3  2025-08-25 11:30

The /etc/inittab File

The inittab file is the heart of sysvinit configuration. It defines what processes should run at different runlevels.

Inittab Entry Format

Each line in inittab follows this format:

Example /etc/inittab File

# Default runlevel
id:3:initdefault:

# System initialization
si::sysinit:/etc/init.d/rcS

# Runlevel scripts
l0:0:wait:/etc/init.d/rc 0
l1:1:wait:/etc/init.d/rc 1
l2:2:wait:/etc/init.d/rc 2
l3:3:wait:/etc/init.d/rc 3
l4:4:wait:/etc/init.d/rc 4
l5:5:wait:/etc/init.d/rc 5
l6:6:wait:/etc/init.d/rc 6

# Getty processes
1:2345:respawn:/sbin/getty 38400 tty1
2:23:respawn:/sbin/getty 38400 tty2
3:23:respawn:/sbin/getty 38400 tty3

Init Scripts Directory Structure

Sysvinit organizes service scripts in a hierarchical directory structure:

/etc/
├── init.d/           # Service scripts
├── rc0.d/            # Runlevel 0 links
├── rc1.d/            # Runlevel 1 links
├── rc2.d/            # Runlevel 2 links
├── rc3.d/            # Runlevel 3 links
├── rc4.d/            # Runlevel 4 links
├── rc5.d/            # Runlevel 5 links
└── rc6.d/            # Runlevel 6 links

Service Script Naming Convention

Scripts in runlevel directories follow a specific naming pattern:

• S##scriptname – Start scripts (S = Start)
• K##scriptname – Kill scripts (K = Kill)
• ## – Two-digit priority number (00-99)

Managing Services with sysvinit

Creating a Custom Service Script

Here’s an example of creating a custom service script:

#!/bin/bash
# /etc/init.d/myservice
# Custom service script example

DAEMON="/usr/local/bin/myapp"
PIDFILE="/var/run/myservice.pid"

case "$1" in
    start)
        echo "Starting myservice..."
        start-stop-daemon --start --quiet --pidfile $PIDFILE --exec $DAEMON
        echo "myservice started."
        ;;
    stop)
        echo "Stopping myservice..."
        start-stop-daemon --stop --quiet --pidfile $PIDFILE
        echo "myservice stopped."
        ;;
    restart)
        $0 stop
        $0 start
        ;;
    status)
        if [ -f $PIDFILE ]; then
            echo "myservice is running."
        else
            echo "myservice is stopped."
        fi
        ;;
    *)
        echo "Usage: $0 {start|stop|restart|status}"
        exit 1
        ;;
esac

exit 0

Making the Script Executable

$ sudo chmod +x /etc/init.d/myservice

Adding Service to Runlevels

Use the update-rc.d command (Debian/Ubuntu) or chkconfig (Red Hat/CentOS):

# Debian/Ubuntu
$ sudo update-rc.d myservice defaults

# Red Hat/CentOS
$ sudo chkconfig --add myservice
$ sudo chkconfig myservice on

Common sysvinit Commands

Service Management Commands

# Start a service
$ sudo service apache2 start

# Stop a service
$ sudo service apache2 stop

# Restart a service
$ sudo service apache2 restart

# Check service status
$ sudo service apache2 status

# List all services
$ sudo service --status-all

Runlevel Management

# Change to runlevel 3
$ sudo init 3

# Change to runlevel 5
$ sudo init 5

# Shutdown system (runlevel 0)
$ sudo init 0

# Reboot system (runlevel 6)
$ sudo init 6

Boot Process with sysvinit

Understanding the sysvinit boot sequence helps troubleshoot startup issues:

1. Kernel loads: Hardware initialization
2. Init starts: First user-space process (PID 1)
3. Inittab parsed: System reads configuration
4. System initialization: Basic system setup
5. Runlevel scripts: Services start based on runlevel
6. Getty processes: Login prompts appear

Boot Messages and Logging

Monitor boot messages using these commands:

# View kernel boot messages
$ dmesg

# View system log
$ tail -f /var/log/messages

# View authentication log
$ tail -f /var/log/auth.log

Troubleshooting sysvinit Issues

Common Problems and Solutions

$ ls -l /etc/init.d/servicename
$ bash -n /etc/init.d/servicename

# Add 'single' to kernel parameters at GRUB
# Or use: init=/bin/bash

Emergency Recovery

If your system fails to boot properly:

# Boot into single-user mode
$ sudo init 1

# Check filesystem
$ sudo fsck /dev/sda1

# Remount root as read-write
$ sudo mount -o remount,rw /

Migrating from sysvinit

While sysvinit is still used in many environments, understanding migration paths is important:

Advantages of Modern Init Systems

• Parallel startup: Faster boot times
• Dependency management: Automatic service ordering
• Process monitoring: Automatic restart capabilities
• Resource control: Better resource management

Checking Your Init System

# Check if using sysvinit
$ ps -p 1 -o comm=
init

# Check for systemd
$ ps -p 1 -o comm=
systemd

Best Practices

Service Script Guidelines

• Always include proper error handling
• Use start-stop-daemon for process management
• Implement status checking functionality
• Follow LSB (Linux Standard Base) headers
• Test scripts thoroughly before deployment

Security Considerations

# Secure script permissions
$ sudo chmod 755 /etc/init.d/script
$ sudo chown root:root /etc/init.d/script

# Use specific user for services
USER="serviceuser"
start-stop-daemon --start --chuid $USER --exec $DAEMON

Performance Optimization

Optimizing Boot Time

Improve system startup performance:

• Remove unnecessary services from startup
• Optimize script dependencies
• Use parallel execution where possible
• Monitor boot time with timing tools

# Time the boot process
$ systemd-analyze time

# Remove service from runlevel
$ sudo update-rc.d -f servicename remove

Conclusion

Sysvinit remains a fundamental part of Linux system administration, especially in enterprise environments and embedded systems. While newer init systems offer advanced features, understanding sysvinit provides valuable insights into Unix system architecture and process management.

Key takeaways from this guide:

• Sysvinit uses runlevels to define system states
• Service scripts follow standardized conventions
• The inittab file controls system initialization
• Proper troubleshooting techniques can resolve boot issues
• Security and performance considerations are essential

Whether you’re maintaining legacy systems or learning system administration fundamentals, mastering sysvinit will enhance your Linux expertise and provide a solid foundation for understanding modern init systems.
