hostapd Linux: Complete Guide to IEEE 802.11 AP and Authentication Server Setup

hostapd (Host Access Point Daemon) is a powerful user-space daemon that enables Linux systems to function as IEEE 802.11 access points and authentication servers. This comprehensive guide covers everything you need to know about configuring, managing, and troubleshooting hostapd on Linux systems.

What is hostapd?

hostapd is an open-source daemon that transforms your Linux machine into a wireless access point (AP) or authentication server. It implements IEEE 802.11 related protocols and can handle various authentication methods including WPA/WPA2/WPA3, making it essential for creating secure wireless networks.

Key Features of hostapd

• IEEE 802.11 AP functionality – Full access point capabilities
• Multiple security protocols – WEP, WPA, WPA2, WPA3 support
• RADIUS authentication – Enterprise-grade security
• Multiple SSID support – Virtual AP capabilities
• Bridge mode support – Network integration
• Management frame handling – Complete 802.11 implementation

Installation of hostapd

Installing hostapd varies depending on your Linux distribution:

Ubuntu/Debian

sudo apt update
sudo apt install hostapd

CentOS/RHEL/Fedora

# CentOS/RHEL
sudo yum install hostapd

# Fedora
sudo dnf install hostapd

Arch Linux

sudo pacman -S hostapd

After installation, verify the installation:

hostapd -v

Expected Output:

hostapd v2.9
User space daemon for IEEE 802.11 AP management,
IEEE 802.1X/WPA/WPA2/EAP/RADIUS Authenticator
Copyright (c) 2002-2019, Jouni Malinen <[email protected]> and contributors

Basic Configuration

hostapd uses configuration files to define access point behavior. The main configuration file is typically located at /etc/hostapd/hostapd.conf.

Creating a Basic Configuration File

Create a basic configuration file for a simple access point:

sudo nano /etc/hostapd/hostapd.conf

Add the following basic configuration:

# Basic hostapd configuration
interface=wlan0
driver=nl80211
ssid=MyLinuxAP
hw_mode=g
channel=7
wmm_enabled=0
macaddr_acl=0
auth_algs=1
ignore_broadcast_ssid=0
wpa=2
wpa_passphrase=SecurePassword123
wpa_key_mgmt=WPA-PSK
wpa_pairwise=TKIP
rsn_pairwise=CCMP

Configuration Parameters Explained

Advanced Configuration Examples

WPA3 Configuration

For modern security standards, configure WPA3:

# WPA3 Configuration
interface=wlan0
driver=nl80211
ssid=SecureAP-WPA3
hw_mode=g
channel=6
wmm_enabled=1
macaddr_acl=0
auth_algs=1
ignore_broadcast_ssid=0

# WPA3 settings
wpa=3
wpa_passphrase=VerySecurePassword2024!
wpa_key_mgmt=SAE
rsn_pairwise=CCMP
ieee80211w=2
sae_groups=19 20 21
sae_require_mfp=1

Enterprise Configuration with RADIUS

Configure hostapd for enterprise authentication:

# Enterprise RADIUS Configuration
interface=wlan0
driver=nl80211
ssid=CorporateNetwork
hw_mode=g
channel=11
wmm_enabled=1

# Enterprise settings
macaddr_acl=0
auth_algs=1
ignore_broadcast_ssid=0
wpa=2
wpa_key_mgmt=WPA-EAP
rsn_pairwise=CCMP
ieee8021x=1

# RADIUS server configuration
auth_server_addr=192.168.1.100
auth_server_port=1812
auth_server_shared_secret=radiussecret
acct_server_addr=192.168.1.100
acct_server_port=1813
acct_server_shared_secret=radiussecret

Multiple SSID Configuration

Create multiple virtual access points:

# Main interface configuration
interface=wlan0
driver=nl80211
hw_mode=g
channel=6
wmm_enabled=1

# First SSID (Main network)
ssid=MainNetwork
wpa=2
wpa_passphrase=MainPassword123
wpa_key_mgmt=WPA-PSK
rsn_pairwise=CCMP

# Second SSID (Guest network)
bss=wlan0_0
ssid=GuestNetwork
wpa=2
wpa_passphrase=GuestPassword123
wpa_key_mgmt=WPA-PSK
rsn_pairwise=CCMP
ap_isolate=1

Starting and Managing hostapd

Manual Start

Start hostapd manually for testing:

# Start with specific configuration file
sudo hostapd /etc/hostapd/hostapd.conf

Expected Output:

Configuration file: /etc/hostapd/hostapd.conf
wlan0: interface state UNINITIALIZED->ENABLED
wlan0: AP-ENABLED

Debug Mode

Run in debug mode for troubleshooting:

sudo hostapd -d /etc/hostapd/hostapd.conf

System Service Management

Configure hostapd as a system service:

# Enable service
sudo systemctl enable hostapd

# Start service
sudo systemctl start hostapd

# Check status
sudo systemctl status hostapd

Expected Status Output:

● hostapd.service - Advanced IEEE 802.11 AP and IEEE 802.1X/WPA/WPA2/EAP Authenticator
     Loaded: loaded (/lib/systemd/system/hostapd.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2025-08-26 02:32:15 IST; 5min ago
       Docs: man:hostapd(8)
   Main PID: 12345 (hostapd)
      Tasks: 1 (limit: 4915)
     Memory: 2.1M
        CPU: 45ms
     CGroup: /system.slice/hostapd.service
             └─12345 /usr/sbin/hostapd -B -P /run/hostapd.pid /etc/hostapd/hostapd.conf

Network Bridge Configuration

To integrate the access point with your existing network, configure bridging:

Create Bridge Interface

# Install bridge utilities
sudo apt install bridge-utils

# Create bridge
sudo brctl addbr br0

# Add ethernet interface to bridge
sudo brctl addif br0 eth0

# Configure bridge IP
sudo ip addr add 192.168.1.1/24 dev br0
sudo ip link set br0 up

Update hostapd Configuration

Add bridge configuration to hostapd.conf:

# Bridge configuration
interface=wlan0
bridge=br0
driver=nl80211
ssid=BridgedAP
hw_mode=g
channel=6
wmm_enabled=1
wpa=2
wpa_passphrase=BridgePassword123
wpa_key_mgmt=WPA-PSK
rsn_pairwise=CCMP

Security Configuration

MAC Address Filtering

Implement MAC address-based access control:

# MAC filtering configuration
interface=wlan0
driver=nl80211
ssid=SecureAP
hw_mode=g
channel=6

# Enable MAC filtering
macaddr_acl=1
accept_mac_file=/etc/hostapd/accept_mac
deny_mac_file=/etc/hostapd/deny_mac

# Security settings
wpa=2
wpa_passphrase=SecurePassword123
wpa_key_mgmt=WPA-PSK
rsn_pairwise=CCMP

Create MAC address files:

# Allow specific MAC addresses
sudo nano /etc/hostapd/accept_mac

Add allowed MAC addresses:

00:11:22:33:44:55
aa:bb:cc:dd:ee:ff
11:22:33:44:55:66

Hidden SSID Configuration

Configure a hidden network:

# Hidden SSID configuration
interface=wlan0
driver=nl80211
ssid=HiddenNetwork
ignore_broadcast_ssid=1
hw_mode=g
channel=6
wpa=2
wpa_passphrase=HiddenPassword123
wpa_key_mgmt=WPA-PSK
rsn_pairwise=CCMP

Monitoring and Management

Real-time Monitoring

Monitor connected clients:

# Show connected stations
sudo hostapd_cli -i wlan0 all_sta

Expected Output:

Selected interface 'wlan0'
00:11:22:33:44:55
flags=[AUTH][ASSOC][AUTHORIZED]
aid=1
capability=0x401
listen_interval=10
supported_rates=82 84 8b 96 0c 12 18 24
timeout_next=NULLFUNC POLL
dot11RSNAStatsSTAAddress=00:11:22:33:44:55
dot11RSNAStatsVersion=1

Interactive Management Commands

Use hostapd_cli for interactive management:

# Start interactive CLI
sudo hostapd_cli

Common CLI commands:

Troubleshooting Common Issues

Interface Issues

Check if the wireless interface is available:

# List wireless interfaces
iwconfig

# Check interface status
ip link show wlan0

If interface is not available:

# Bring interface up
sudo ip link set wlan0 up

# Check for conflicts with NetworkManager
sudo systemctl stop NetworkManager
sudo systemctl disable NetworkManager

Configuration Validation

Test configuration syntax:

# Test configuration file
sudo hostapd -t /etc/hostapd/hostapd.conf

Successful validation output:

Configuration file: /etc/hostapd/hostapd.conf
Configuration validation successful.

Driver Issues

Check supported features:

# Check wireless capabilities
iw list

Common driver solutions:

# For older hardware, try hostap driver
driver=hostap

# For modern hardware, ensure nl80211
driver=nl80211

# Check kernel modules
lsmod | grep -E "(mac80211|cfg80211|ath|rt|iwl)"

Performance Optimization

Channel Selection

Optimize channel selection for better performance:

# Scan for channel usage

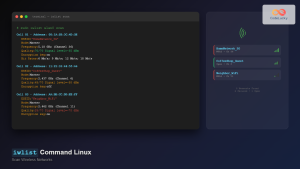

sudo iwlist wlan0 scan | grep Frequency

# Use automatic channel selection
channel=acs_survey
acs_num_scans=5

Quality of Service (QoS)

Configure WMM for better QoS:

# QoS configuration
wmm_enabled=1
wmm_ac_bk_cwmin=4
wmm_ac_bk_cwmax=10
wmm_ac_bk_aifs=7
wmm_ac_be_cwmin=4
wmm_ac_be_cwmax=6
wmm_ac_be_aifs=3
wmm_ac_vi_cwmin=3
wmm_ac_vi_cwmax=4
wmm_ac_vi_aifs=2
wmm_ac_vo_cwmin=2
wmm_ac_vo_cwmax=3
wmm_ac_vo_aifs=2

Log Analysis

Monitor hostapd logs for troubleshooting:

# View real-time logs
sudo journalctl -u hostapd -f

# View recent logs
sudo journalctl -u hostapd --since "1 hour ago"

# Check syslog for hostapd entries
sudo tail -f /var/log/syslog | grep hostapd

Security Best Practices

Strong Configuration Example

# Secure production configuration
interface=wlan0
driver=nl80211
ssid=ProductionAP
hw_mode=g
channel=6
wmm_enabled=1

# Strong security settings
macaddr_acl=0
auth_algs=1
ignore_broadcast_ssid=0
wpa=3
wpa_passphrase=VeryStrongPassword2024!@#$
wpa_key_mgmt=SAE WPA-PSK
wpa_pairwise=CCMP
rsn_pairwise=CCMP
ieee80211w=2
sae_groups=19 20 21

# Additional security
max_num_sta=50
ap_isolate=0
disassoc_low_ack=1

Regular Maintenance

• Update regularly: Keep hostapd updated for security patches
• Monitor logs: Regular log analysis for suspicious activity
• Password rotation: Change passwords periodically
• Configuration backup: Maintain backup of working configurations
• Performance monitoring: Monitor AP performance and client connections

Conclusion

hostapd is a powerful tool for creating IEEE 802.11 access points on Linux systems. With proper configuration and security measures, it can provide robust wireless networking solutions for various scenarios, from simple home access points to enterprise-grade authentication servers. Regular monitoring, maintenance, and security updates ensure optimal performance and protection of your wireless infrastructure.

Master these configurations and troubleshooting techniques to effectively deploy and manage hostapd in your Linux environment, creating secure and reliable wireless access points that meet your specific networking requirements.
